Remote Silence and Reset Switch
Remote Silence and Reset push-button switch includes Momentary LED push-buttons, and NEMA 4 enclosure.
Order by 1 P.M CST to ship same day
92 in stock
Shop by Gas
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Gas
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Gas
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Shop by Model
Remote Silence and Reset push-button switch includes Momentary LED push-buttons, and NEMA 4 enclosure.
Order by 1 P.M CST to ship same day
92 in stock
Downloads
Remote Reset/Silence Brochure
Product Details
Specifications
Size | 5.1″ H x 4.2″ W x 4″ D |
Weight | 1.0 lbs |
Contacts | 2 normally open |
Current Rating | 1.5A, 24vdc |
Ingress Protection | IP66 / NEMA 4 |
Operating Temperature | -40F to 150F |
Mechanical Durability | 300,000 cycles |
Mounting Plate | Anodized Aluminum |
Warranty | 2 years |
Additional Details
The S1, R1, and SR1 switches allow the GG-6 control panel to be located outside of the compressor room with the Reset and Silence switches located inside the compressor room for easy access. A Silence switch can also be located outside of the compressor room.

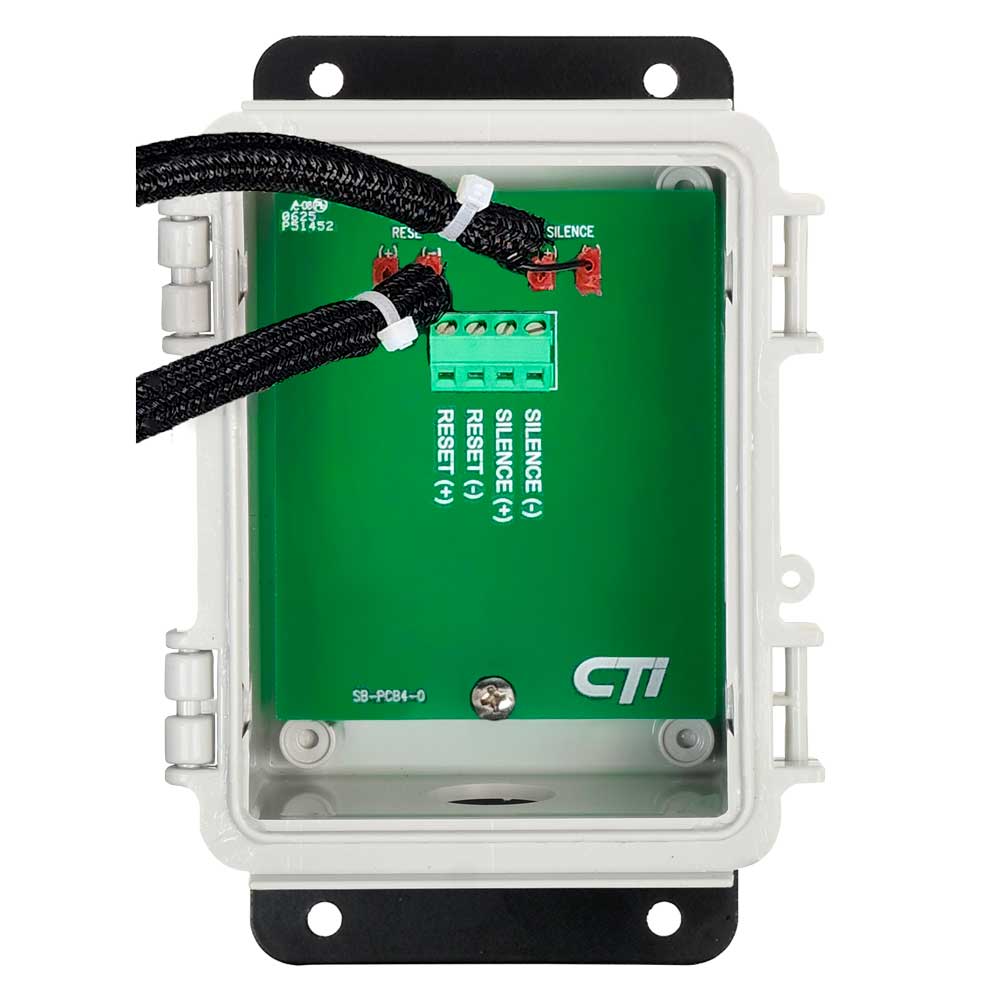

The switches are connected to the GG-6 controller via three wires for the reset switch and four wires for the silence/reset, and has wire terminals on the circuit board for optional switch lighting. These switches can be used in other controller applications such as PLCs and interlock panels.
The switches are housed in a durable polycarbonate enclosure able to withstand weather and washdown environments for indoor or outdoor mounting applications. A terminal block for wire landings, and mounting flanges are also included for easy installation.
