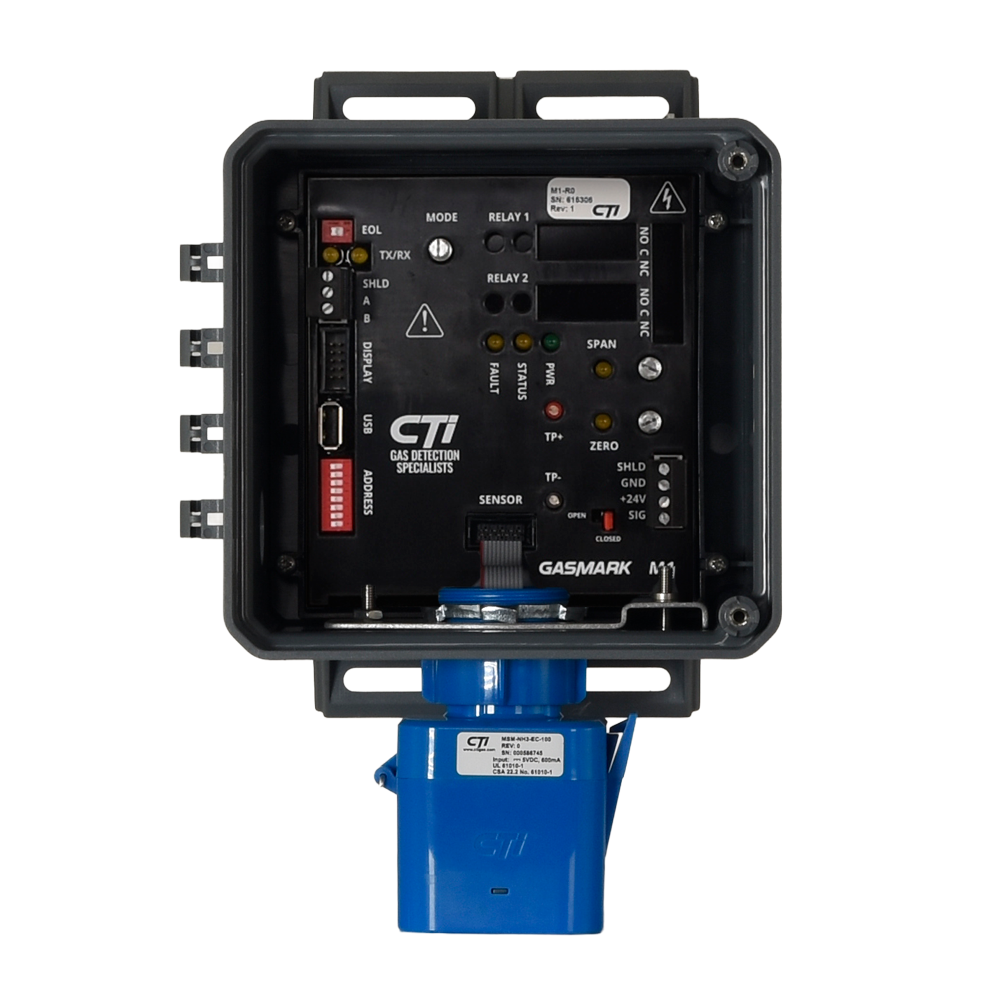

GasMark M1 Ammonia Gas Detector

Coming Soon!

Introducing the GASMARK™ M1 Industrial Gas Sensor for Ammonia! The M1 retains all the rugged features of the GG-NH3 detector. It also offers Modbus connectivity as well as options for a built-in display, and relay outputs. Quote requests and orders are being accepted now.

Sensor Element

Relay Outputs

Display Options

Clear

Downloads

GasMark M1 Manual

GasMark M1 Brochure

Product Details

Specifications

Equipment Options

Related Products

GG-NH3 Ammonia Gas Detector

Shop Now

GG-O2 Oxygen Gas Detector

Shop Now

DuoSense Modbus vehicle emissions monitor

Shop Now

GG-CO Carbon Monoxide Gas Detector

Shop Now

GG-H2 Hydrogen Gas Detector

Shop Now

Enclosure	Injection-molded, UL 3RX/4X polycarbonate enclosure with hinged lid. For non-classified areas.
Weight	4 pounds
Dimensions	10.35” high x 7.42” wide x 4.93” deep (263mm x 188mm x 125mm)
Power Supply	+24 VDC, (12-30 Vdc), power supply with isolation or class II power supply
Max Current Draw	350mA
Max Current Draw (w/Optional Display	500mA
Output Signal	Linear 4-20 mA (max input impedance: 400 Ohms)
(Optional) Display	OLED, monochromatic, 2.7″x1.5″
Communication	RS-485, Modbus RTU
Data Format	8-E-1 @ 9600 baud
Alarms	User Configurable
Sensor Technology	SAFECELL® Electrochemical
(Optional) Relay Outputs	(2) Programmable SPDT, Form C dry contacts. 5A @ 24Vdc or 8A 120-240Vac
Terminal Block Plugs (Field Wiring)	26-12 AWG, torque 4.5 lbs-in
4-20 mA Power/Output Wiring	3-conductor, shielded, stranded with drain wire, ≥ 18 AWG cable (Belden 8770 or equivalent) up to 1500 ft
RS-485 Communication Wiring	RS-485 communication cable, 22-24 AWG, 2 conductor, twisted pair, stranded, with drain wire (Alpha 6460, or equivalent).
RS-485 Power Wiring	Use 2-conductor 14 AWG stranded copper cable with drain wire (Belden 5100UE or equivalent).
Location	Indoor/Outdoor/Washdown
Pollution Degree	2
Storage Temperature	-40°F to 185°F (-40°C to 85°C)
Operating Temperature	-49°F to 122°F (-45°C to 50°C)
Operating Humidity	5-100% condensing
Altitude	Up to 4000m ((13123 ft)
Warranty	2 years sensing element and transmitter
